7 palcov 800*480 IPS TFT modul

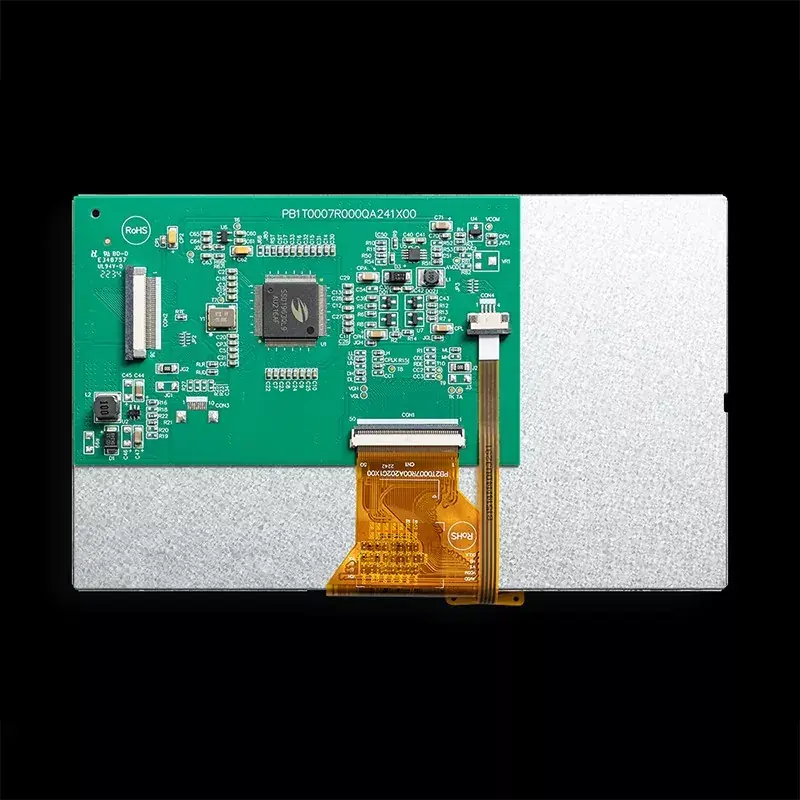

7 inch TFT Module as a common size, what are the competitive advantages of the Victronix 7 inch 800*480 IPS TFT Module? At first, it comprises a TFT-LCD panel, driver IC, FPC, and a backlight unit. It has a 7 inch active area (152.40×91.44 mm), 800(H)×480(V) pixel resolution, and 16.7M color depth to provide users with a clear display. Secondly, it integrates a 3S8P white LED backlight unit with a typical brightness of 400 cd/m² (75% minimum uniformity) and a rated life of 30,000-50,000 hours (at 50% initial brightness). In addition, not only does it have a standard 18-bit RGB interface (6 bits per color), DE (Data Enable), and HV sync modes to simplify integration, but has a high contrast ratio of 800:1. The Victronix 7 inch 800×400 IPS TFT Module is RoHS compliant and tested by strict industry protocols to provide customers with high quality products.

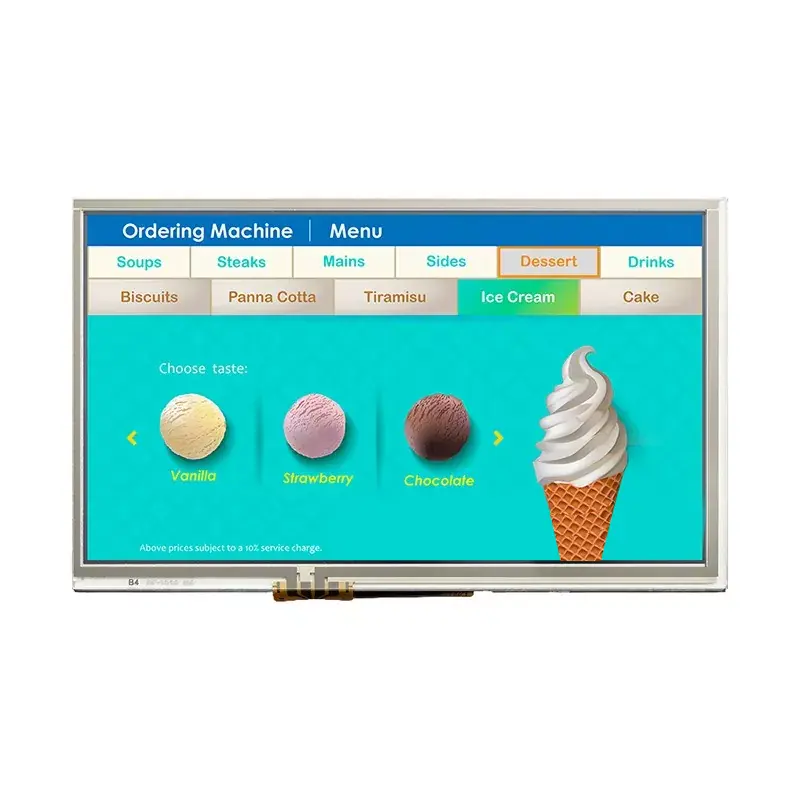

This Victronix 7inch TFT Module is suitable for Industrial Control Panels & HMIs, Portable Devices & Instrumentation, Automotive Displays & Telematics, Smart Home Control Panels, Kiosks & Point-of-Sale Systems.

General Specifications

VXT700KWSA-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit. The 7.0¢¢ display area contains 800x480 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.

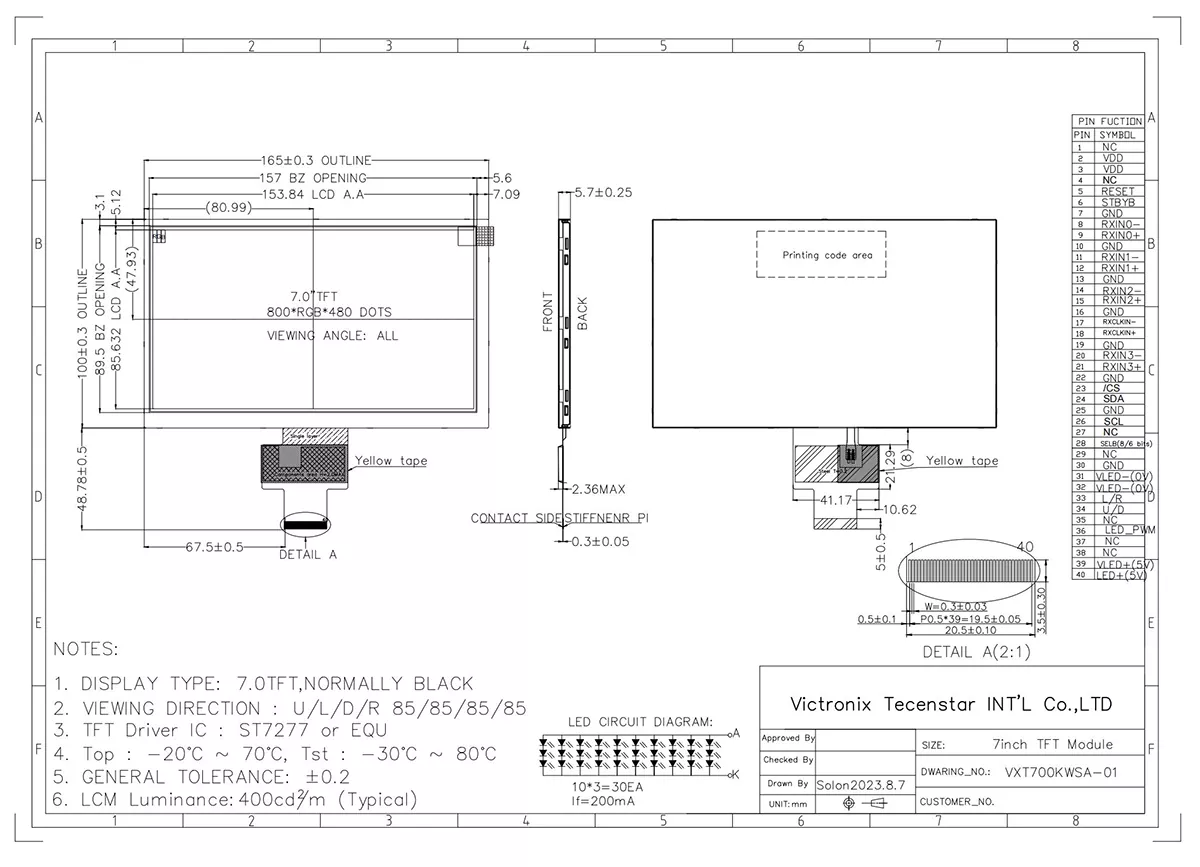

Outline Drawing
