VA segment LCD modul

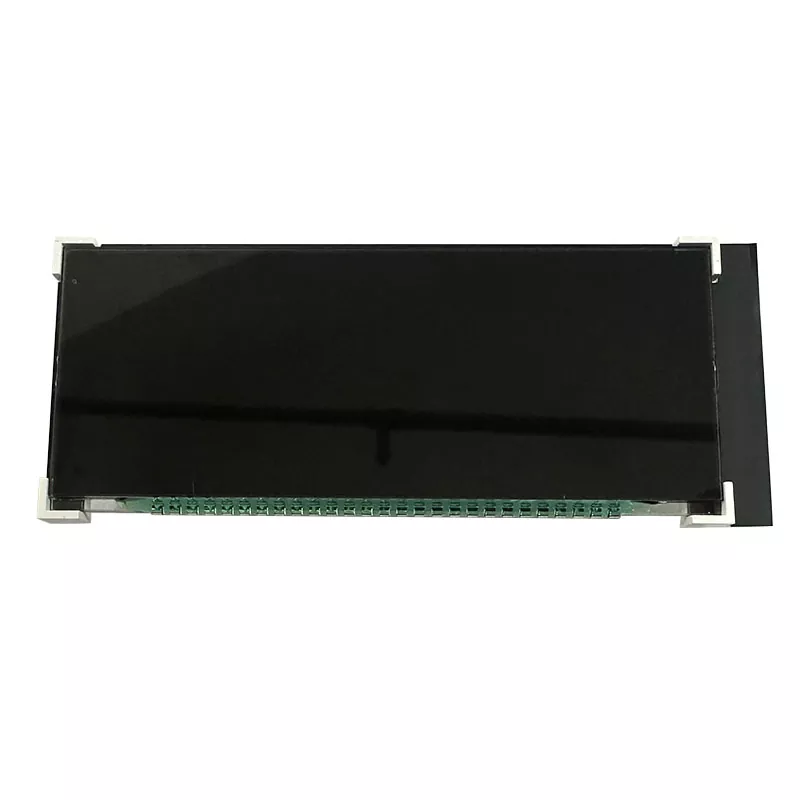

Tento modul LCD v segmente Victronix VA je modul LCD VA (vertikálne zarovnanie) priemyselného modulu VA (Vertikálne zarovnanie), ktorý obsahuje záporný priepustný displej s optimálnym smerom prezerania 12 hodín. Navrhnuté pre spoľahlivosť v náročných prostrediach, integruje biely systém podsvietenia LED (VF = 3,0V, IF = 60MA) s konštrukciou proti svetlu. Ako profesionálny výrobca a dodávateľ modulov TFT v Číne je tento modul LCD segmentu Victronix VA striktne v súlade s environmentálnymi normami ROHS, ktorý poskytuje vynikajúci výkon aplikácií.

Model:VX50431-TY036LA

Odoslať dopyt Stiahnuť PDF

Popis produktu

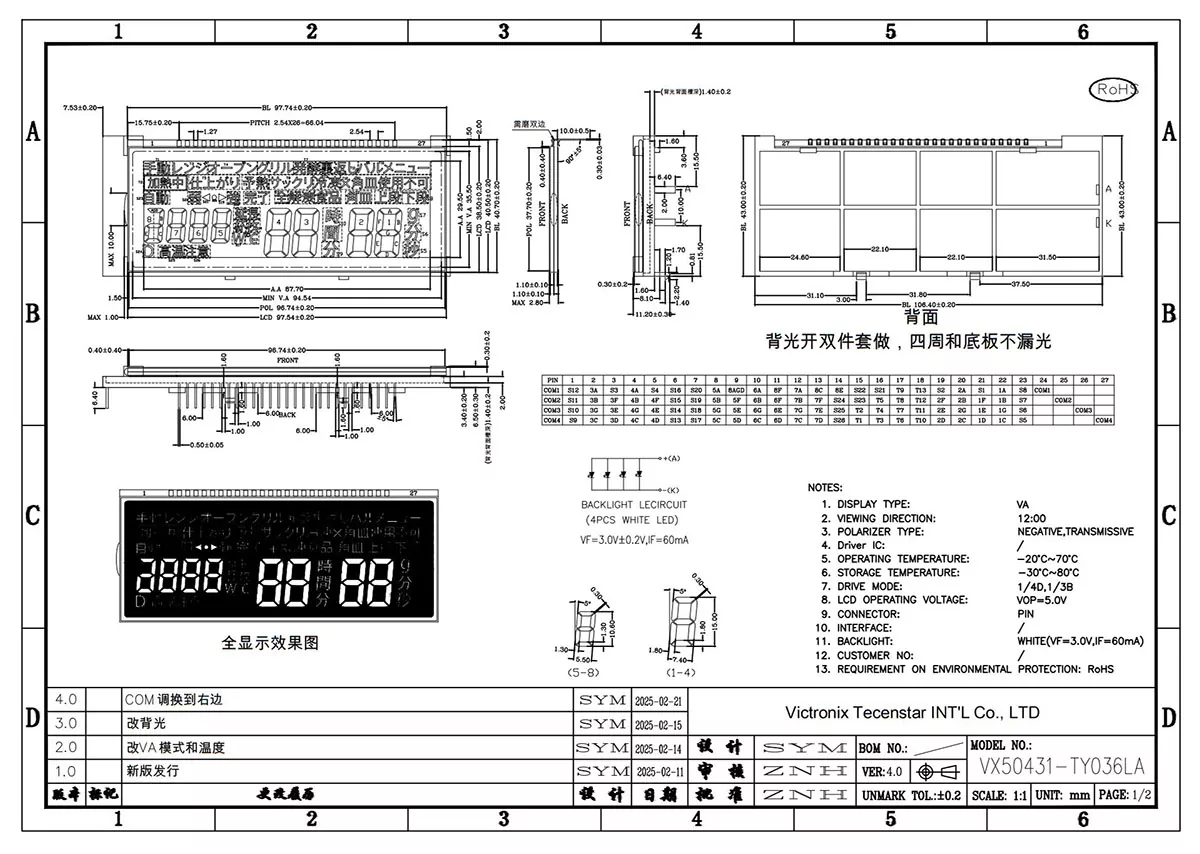

This Victronix VA Segment LCD Module is highly regarded in Japanese markets, what makes our products different from other manufacturers? At first, it has high optical performance such as ≥10:1 contrast ratio, 80ms (rise)/30ms (fall) response, 45° viewing angle (horizontal), and 25° vertical viewing. Secondly, it was validated through 96hr high-temp (70°C)/low-temp (-20°C) operation, 90%RH humidity resistance, and 10–55Hz vibration testing to operate reliably from -20°C to +75°C. In addition, its display Area is 87.7 × 29.5 mm and the outline dimension is 106.4 × 43.0 × 11.2 mm (excl. FPC).

This Victronix VA Segment LCD Module is suitable for low drive voltage and low current consumption. Due to its high contrast and low cost, it is widely used for audio, telephones, instruments, ovens, etc.

Thishigh qualityVA Segment LCD Module is highly regarded in Japan markets due to our strict quality control and stable supply. This lcd has 1/4 duty,1/3 bias, 12:00 optimal viewing angle.

This LCD shows bright white pixels illuminated on a vibrant black background, it is suitable for low drive voltage and low current consumption, besides its high contrast and low cost, its is Widely used for audio, telephone, instruments, oven etc.
